Wood Chipper Startup Checklist

Wood Chipper Startup Checklist main image Wood Chipper Startup Checklist image

Checklist Before Start the Engine of Wood Chipper:

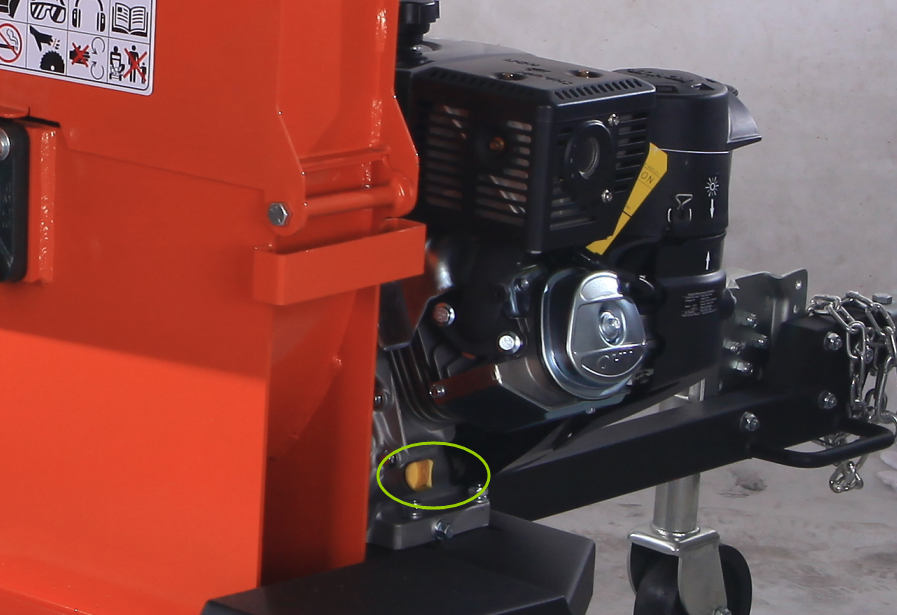

1)Ensure Engine Oil Added - This is a 4 stroke engine, please ensure the 4-stroke engine oil added. Use oil funnel provided to add oil into the oil tank.

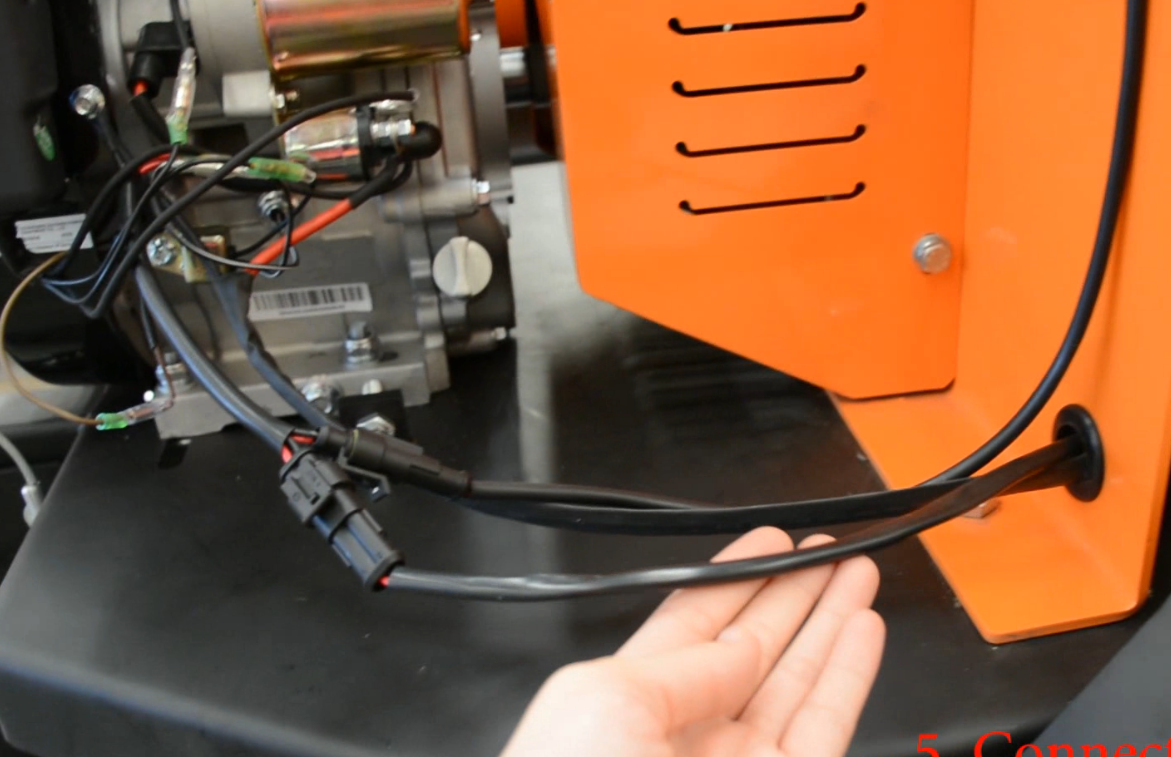

2) Check Cable Connection - E-start cabcel should be connected as shown in the photo below:

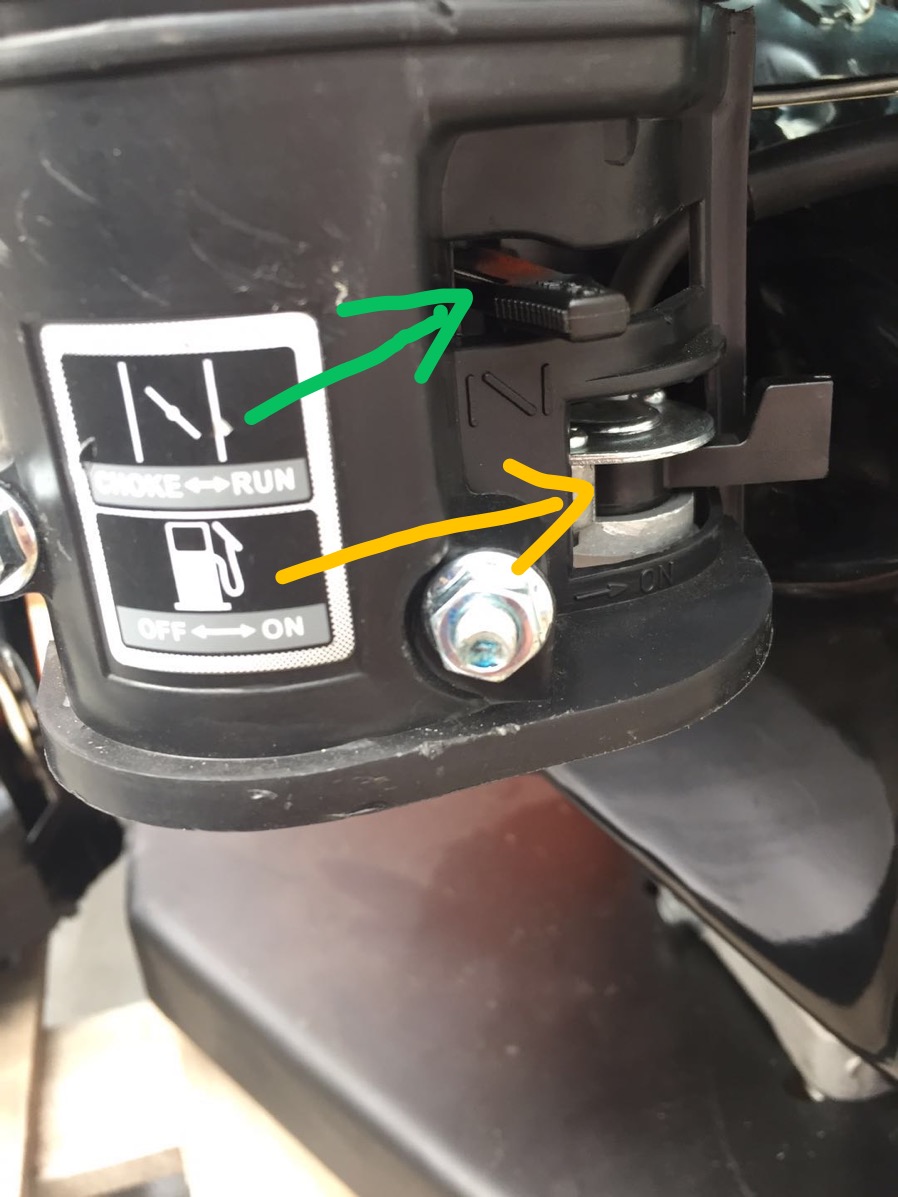

3) Check Choke Setting - When doing a cold start, the choke should be setting at close position, fuel at On position (as shown in the photo below). After started, switch choke to Run position.

4) Throttle Setting - When start, turn throttle lever to Rabbit position, once started, adjust to appropriate position as you required.
